    Air Shower

    • Home
    • All Products
    • Air Shower

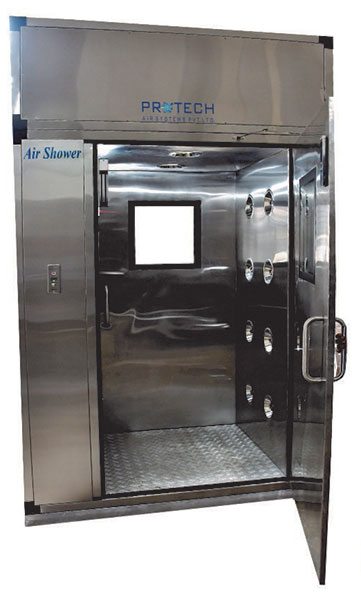

    Air Shower

    AIR SHOWER

    Air Shower
    Send Enquiry
    Cleanliness:ISO 8
    Material of Construction:Main Structure do with MS Powder Coated / S.S. 304 construction
    Inside Working Area : MS Powder Coated / S.S 304
    Bottom do with Aluminum Checker Plate
    Both Side Entry / Exit Door : S.S / GI Powder Coated duly Double Skinned
    Velocity at Nozzle:15 ± 5 M/S
    Blower Assembly:Statically and dynamically balanced Motor & Blower, designed for supply of sufficient capacity and static pressure to take care of airflow
    Doors:Automatic swing, micro-processor controlled electromagnetic inter locking doors with glass panels. (Comprising with Door Closure, 'D' Handle, Ball Bearing Hinges)
    HEPA Filter:HEPA Filters down to 0.3mic. particulate at an efficiency of 99.999% (H14) duly tested on PAO tested
    Make-up Air Filter:Pre-Filter down to 5mic. Particulate at an efficiency of 95% (EU5) enclosed in aluminum frame with epoxy sealing (Washable Type)
    Return Air Filter:Pre-Filter Filter down to 5mic. Particulate at an efficiency of 95% (EU5) enclosed in aluminum frame with epoxy sealing (Disposable Type)
    Nozzle:All Nozzles with S.S. 304
    Door Interlocking:Door Opening with Solid State Electronic Inter Locking Mechanism
    Power supply:440 V, 50Hz, Three Phase
    Operation SequenceDetail of logic Sequence:
    First Cycle of operation : -
    When D1 & D2 are Closed (Both Door are in locked condition)
    Blower in off condition
    When D1 is Opened (Door D2 gets locked condition)
    Blower in off condition
    When D1 is closed (Door D2 still in locked condition)
    Blower will be on when both doors are in locked condition
    Blower motor (As per timer setting) gets off and then Door D2 gets opened / unlocked, D1 in locked condition
    Door D2 is closed condition
    Door D1 / D2 gets opened / unlocked
    At a time only one door can opened
    Emergency Stop/Unlock Button provided at Entry / Exit/ Inside chamber
