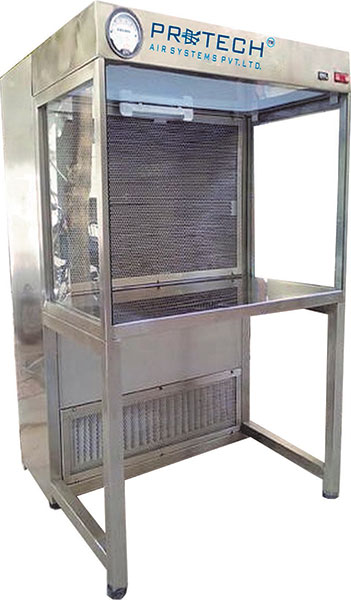

HORIZONTAL LAMINAR AIR FLOW UNIT
| Cleanliness | : | Class 100 / ISO CLASS 5 | |
| Flow Direction | : | HORIZONTAL / VERTICAL | |
| Velocity at Grill | : | 90 ± 20 FPM (0.45 ± 20 m/sec) | |
| Material of Construction | : | External & Internal part with : MS Powder Coated / SS 304 Working top with SS-304 | |
| HEPA Filter | : | Minipleated HEPA Filters down to 0.3mic. particulate at an efficiency of 99.997% (EU14) duly tested on DOP tested | |
| Pre-Filters | : | Pre-Filter down to 5mic. Particulate at an efficiency of 95% (EU7) enclosed in aluminum frame with epoxy sealing (Washable Type) | |
| Side Wall | : | Do with Glass | |
| Accessories | : | DOP Port | |
| Blower Assembly | : | Dynamically and statically balanced blower and motor | |
| Electrical | : | 1) On/Off Panel (BL / FL / UV) 2) FL Light 3) U V Light | |
| Pressure Measurement | : | Magnehalic Gauge to check the pressure drop across the HEPA filter | |
| Power supply | : | 230 V, 50Hz, Single Phase | |
| Documentation | : | DQ, IQ, OQ Report | |
